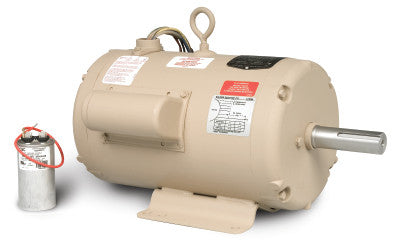

Baldor UCLE7510 7.5-10 HP 3450 RPM Single Phase TEAO Grain Dryer Vane Axial Fan Motor

Specifically engineered for use on vane axial fan crop dryers, Shaft 3/4" longer than NEMA standard, Shaft keyed, drilledand tapped with internal 1/4-20 tap 1" deep 1.00 Service Factor, Thermostats, Epoxy paint, 95 pounds

Specifications:

• VOLTAGE | 230
• SERVICE FACTOR | 1.00
• SERIAL-NUMBER | --
• RATING | 40C AMB-CONT
• POWER-FACTOR | 95
• PHASE | 1
• OUTPUT [hp] | 7.5-10 AIR OVER
• SPEED [rpm] | 3450
• KVA-CODE | F
• INSULATION-CLASS | F
• HERTZ | 60
• FRAME | 182TZ
• ENCLOSURE | TEAO
• FL EFFICIENCY | 85.5
• DOE-CODE | --
• DESIGN CODE | -
• BEARING-OPP-DRIVE-END | 6205
• BEARING-DRIVE-END | 6206
• 208V AMPS | 28
• FL AMPS | 38
• CATALOG NUMBER | UCLE7510

PLEASE NOTE, IMPORTANT INFORMATION:

• This Baldor Grinder ships by truck and someone will need to be present when delivered. Check one of the boxes above for Residential/Farm or Liftgate if needed
• Picture May Vary From Actual Product
• Manufacturer's Warranty Only!
• By purchasing this item you agree to Baldor's Terms and Conditions
• SALES TAX | We collect sales tax in CA, FL, GA, IL, IN, IA, MA, MI, MO, NJ, OH, PA, TN, TX, VA and WI. These will be applied at checkout. Baldor collects Sales Tax in the following states: CT, DC, HI, LA, MD, ME, MS, NY. This tax will NOT be applied at checkout.
